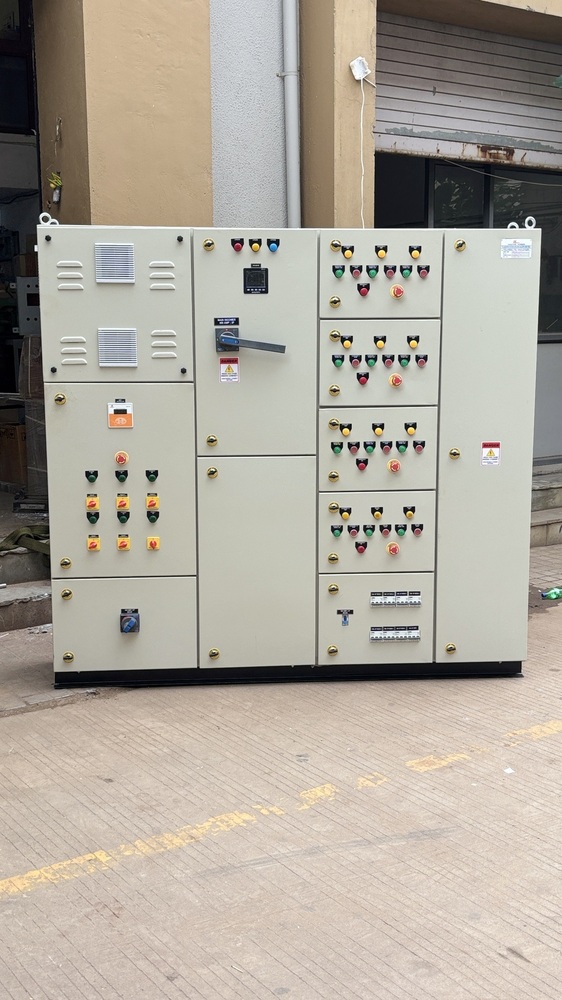

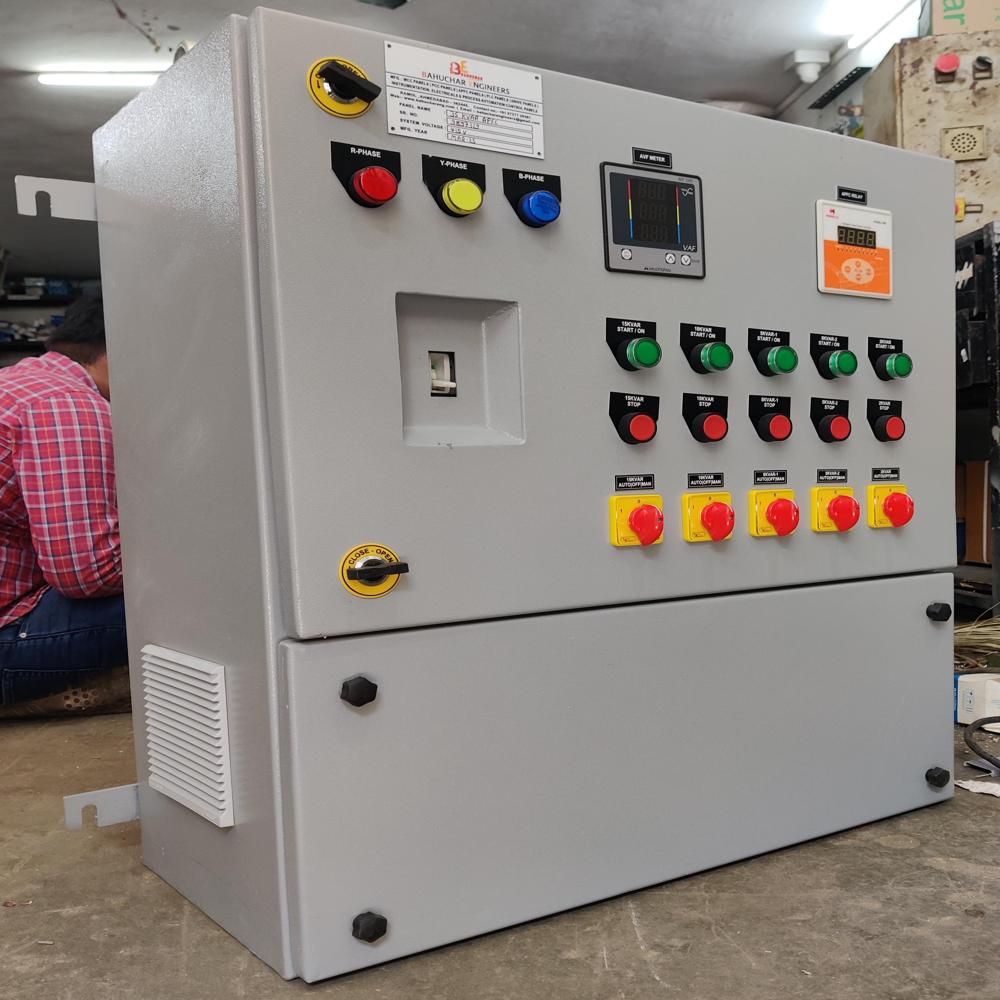

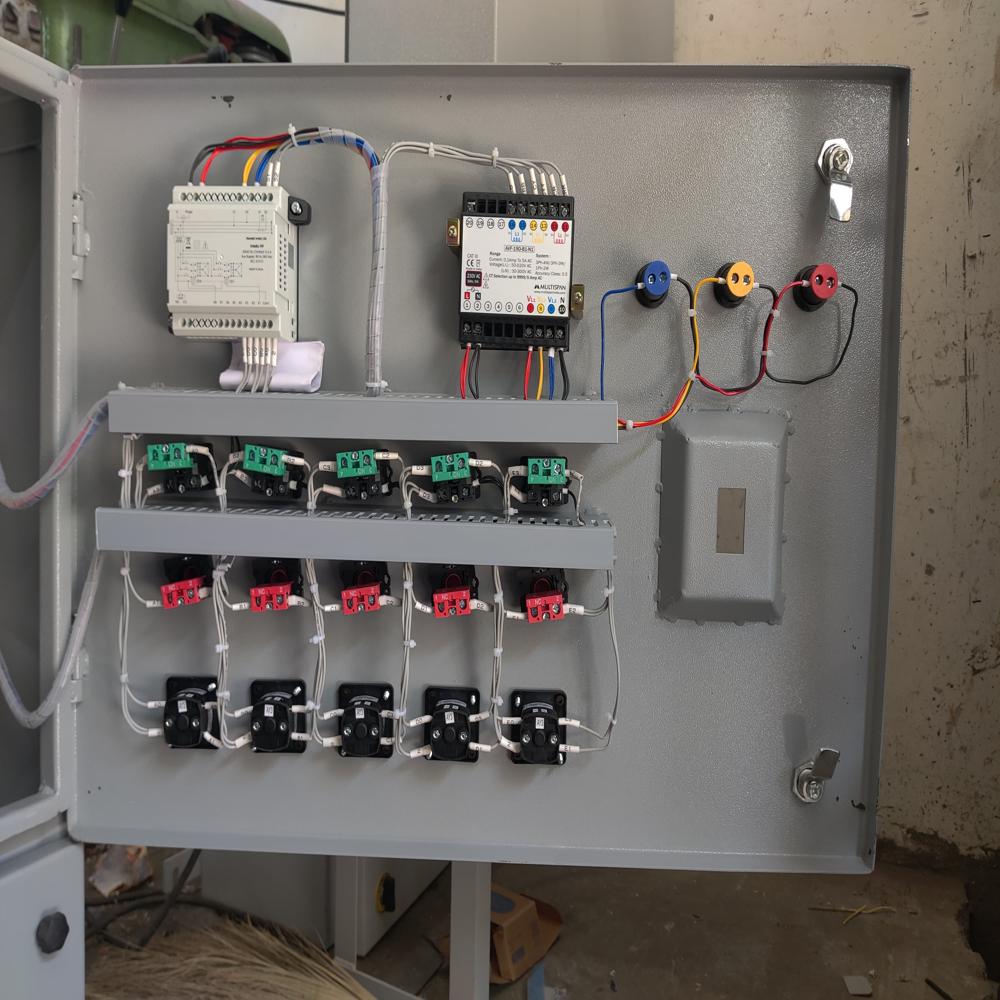

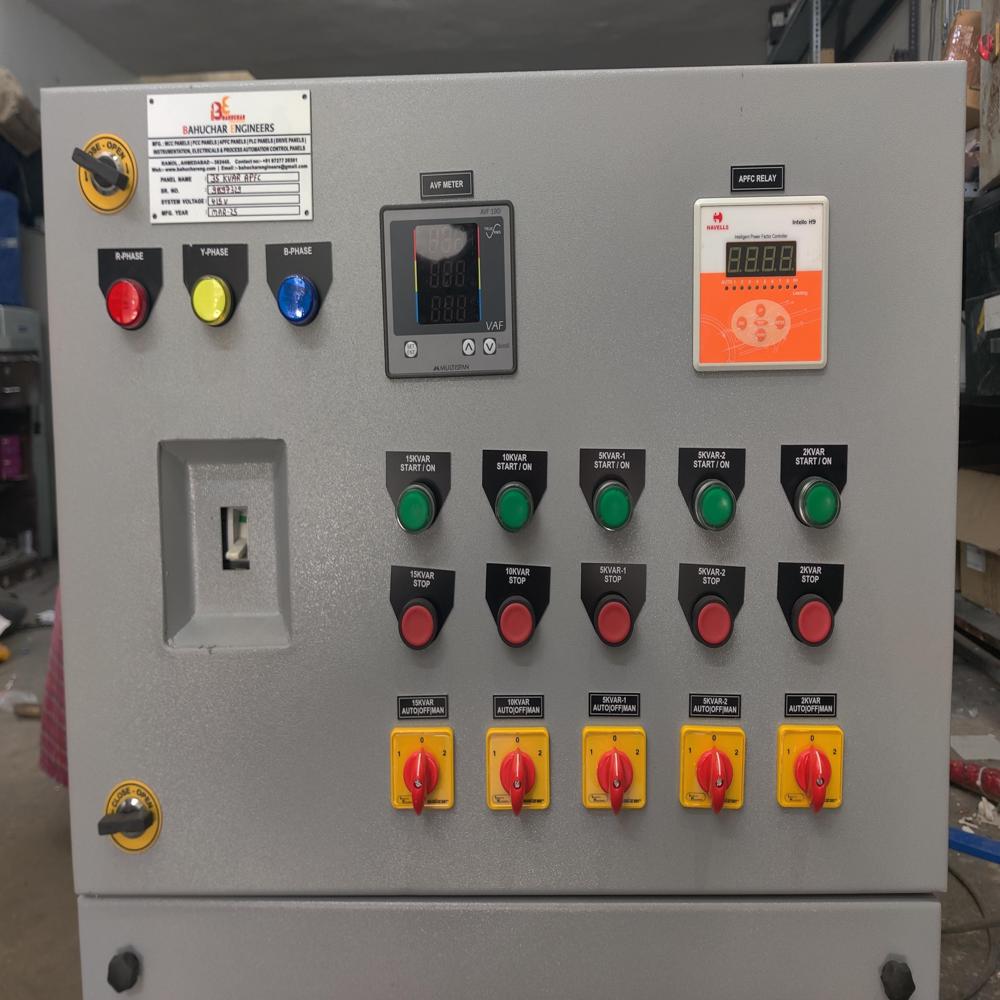

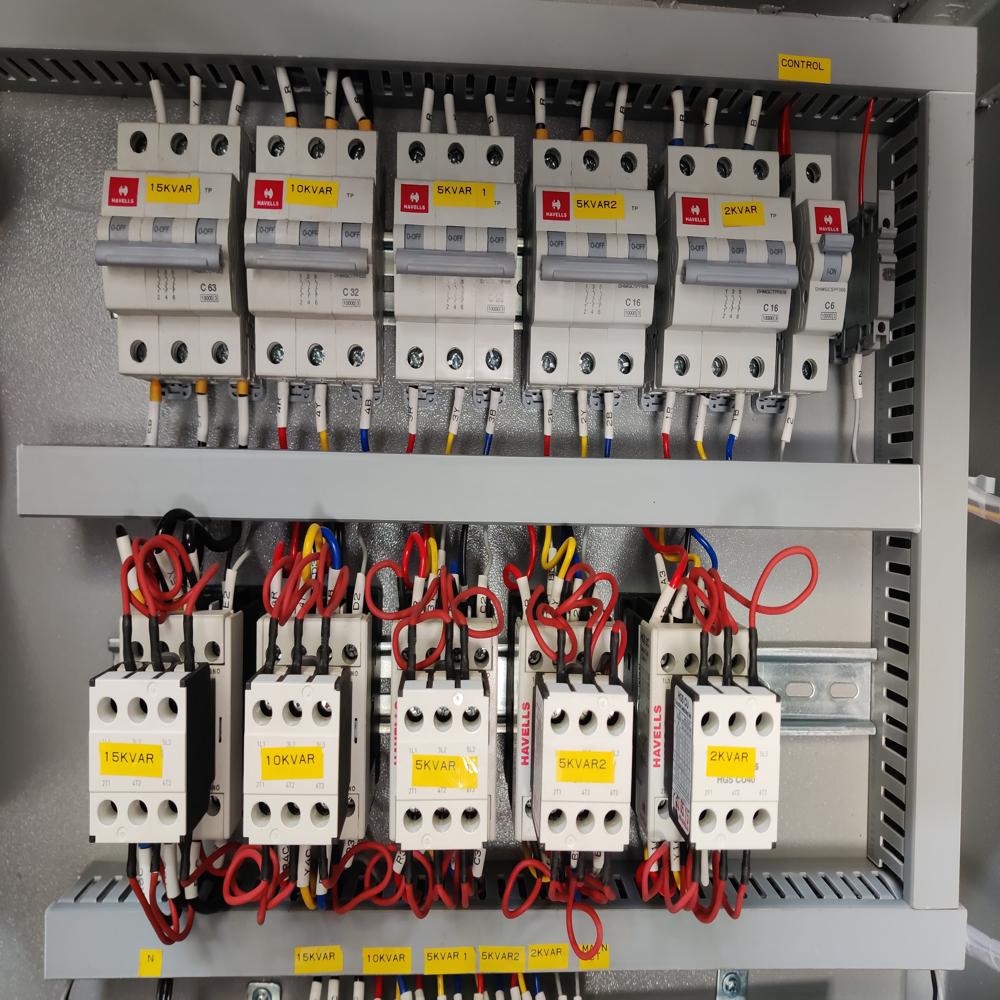

automatic powerfactor control panel

About automatic powerfactor control panel

- Design and Construction: Standardized modular sheet steel enclosures with epoxy powder coating .

- Electrical Specifications:

    - Rated Voltage: 415V-440V/50Hz (designs available for 380V, 480V, 690V, 750V - 50/60Hz) .

    - Output Rating: Varies depending on the specific model and application .

- Components:

    - Capacitors: Heavy-duty series rated at 525V, 690V, and 880V, 50/60Hz .

    - Reactors: H-Class 5.6%, 7%, 14% or other tuning/detuning ratings available upon request .

- Protection and Control:

    - Incoming/Outgoing: MCCB/ACB as incomer and HRC fuses for backup protection .

    - Protection Class: IP 40 .

- Environmental Specifications:

    - Ambient Temperature: 50C max short-term, 40C average in 24 hours, 35C annual average, and -10C low limit .

- Additional Features:

    - Fast real-time transient-free switching of capacitor banks .

    - Highly intelligent microprocessor-based 3-phase PF controller with dual PF setting and master-slave modes
